Commercial Metal Doors With Glass Kits

Get Instant Pricing & Ship Time

5-7 Business Days on Stock Items

Starting at $314

Fast Shipping

Lowest Prices

Instant Pricing

Trying to install doors and frames at a jobsite is hard enough, but when you have to install glass as well it can go from hard to sometimes very difficult. Knowing what type of glass to use and the size you will need to match your window frame can be a pain as well. CDF offers the option of eliminating one step in that process by installing the proper rated glass and glazing materials to conform to the newest building codes for both fire and safety. Installing the glass at the factory makes your job easier, and saves time which saves you money. We offer a full line of tempered, insulated for exterior, and wire or clear pyran-platinum glass for fire rated doors.
Instant Pricing
Build A Quote

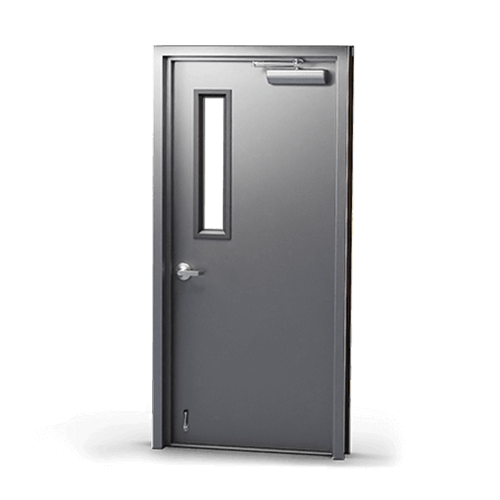

single-metal-navbarv1

Standard Product Description

Precision made core is composed entirely of wood particles which provides a stress free foundation and a completely smooth, uniform surface free of any voids, knots or patches that could show through the finish
Available glass types - tempered glass, wire glass, Power and Platinum glass, insulated glass

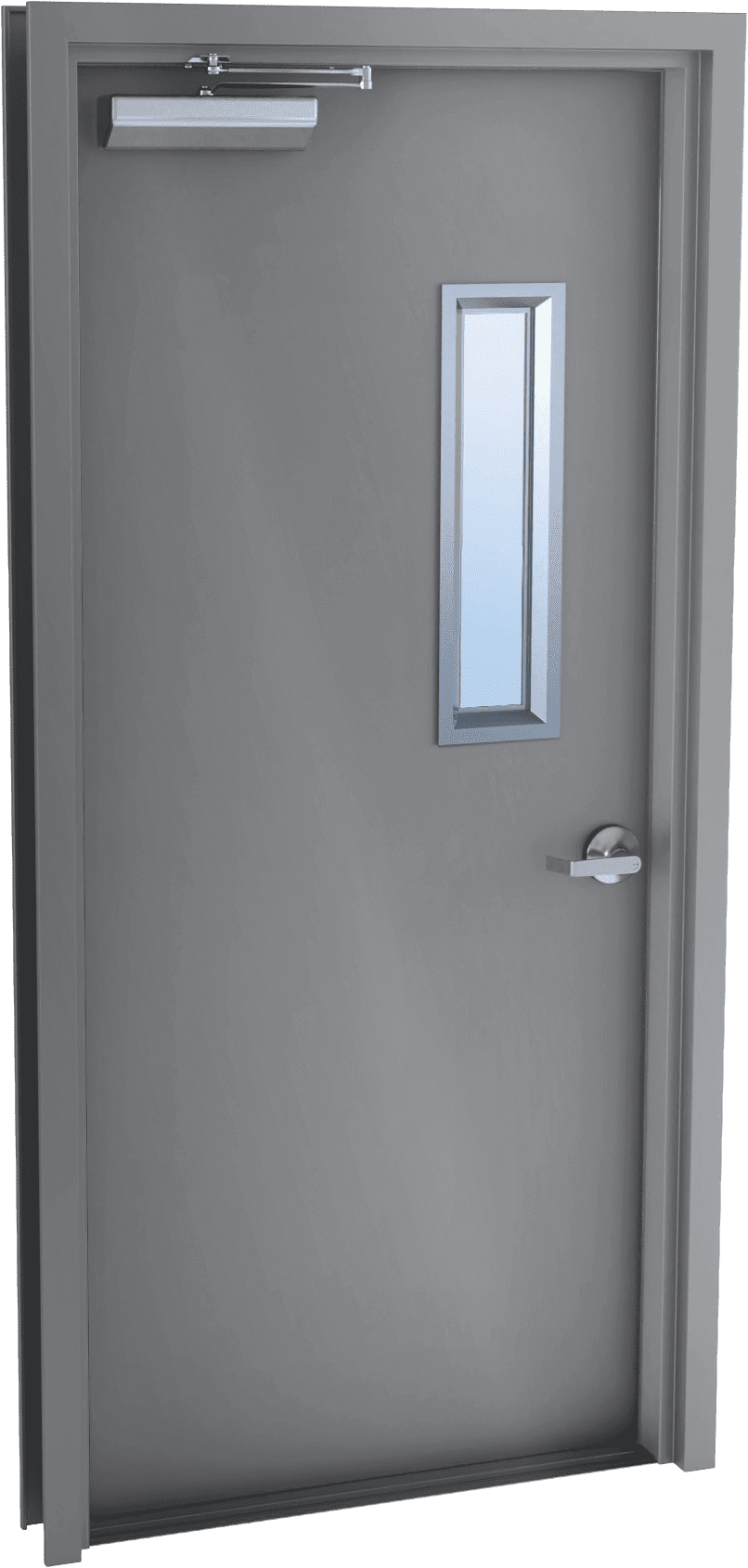

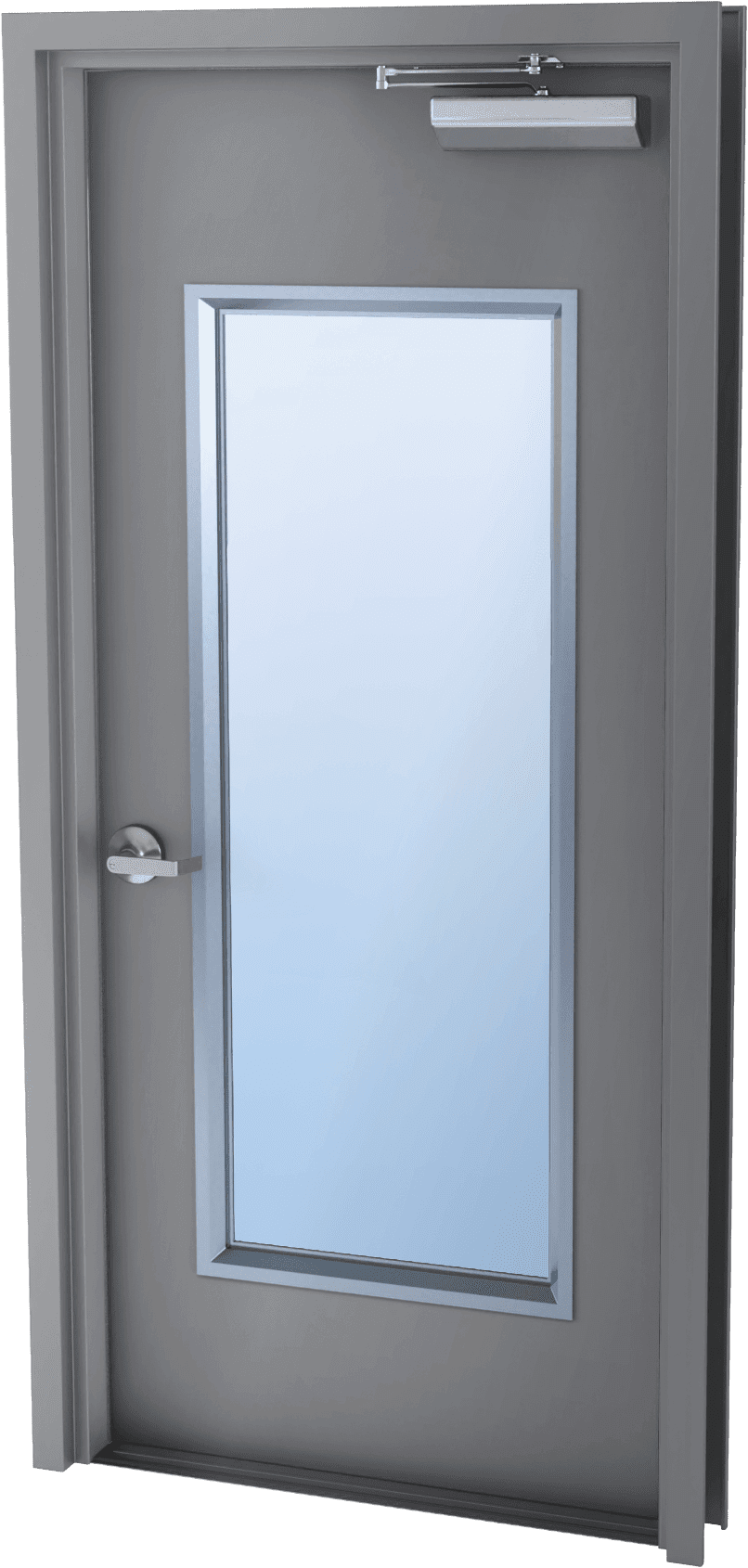

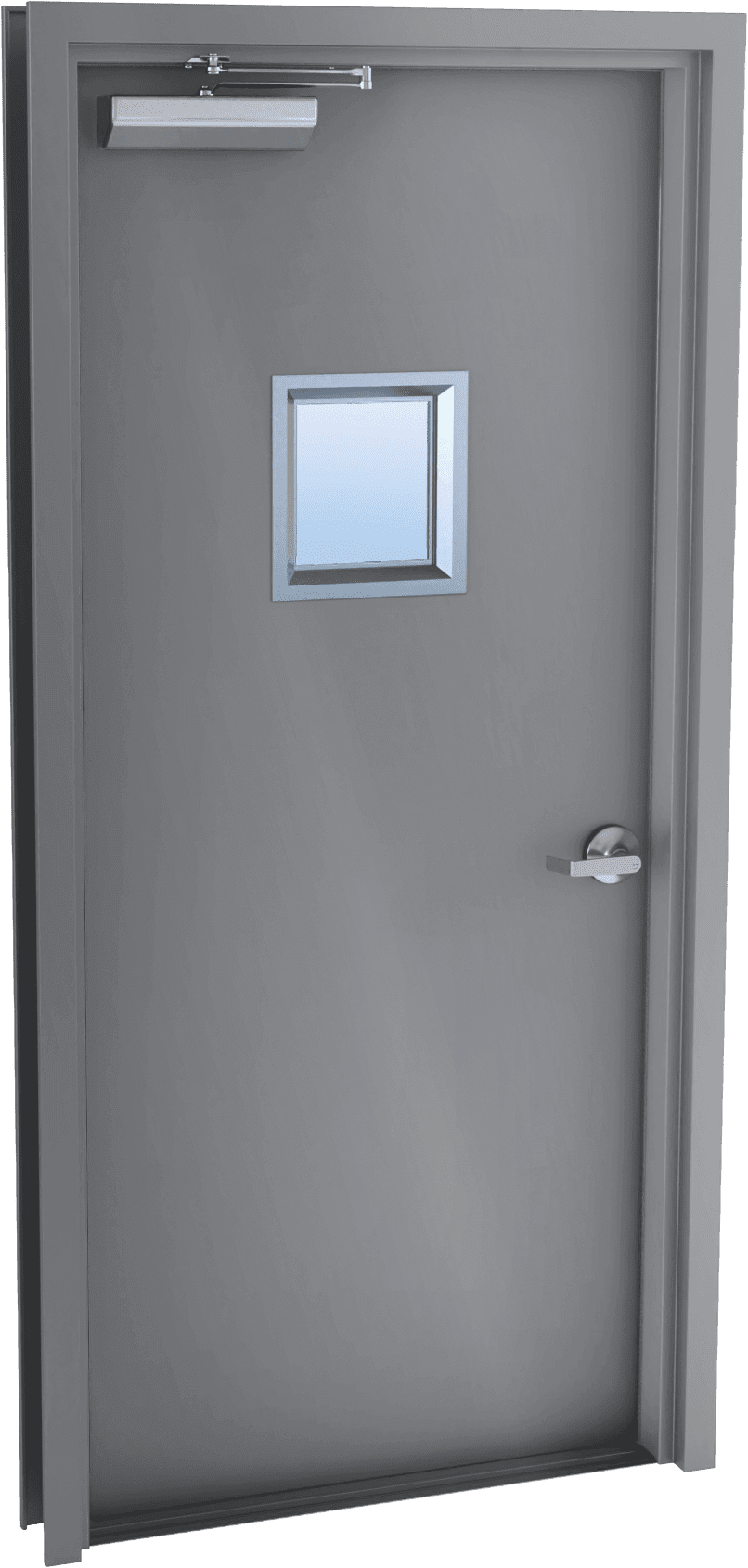

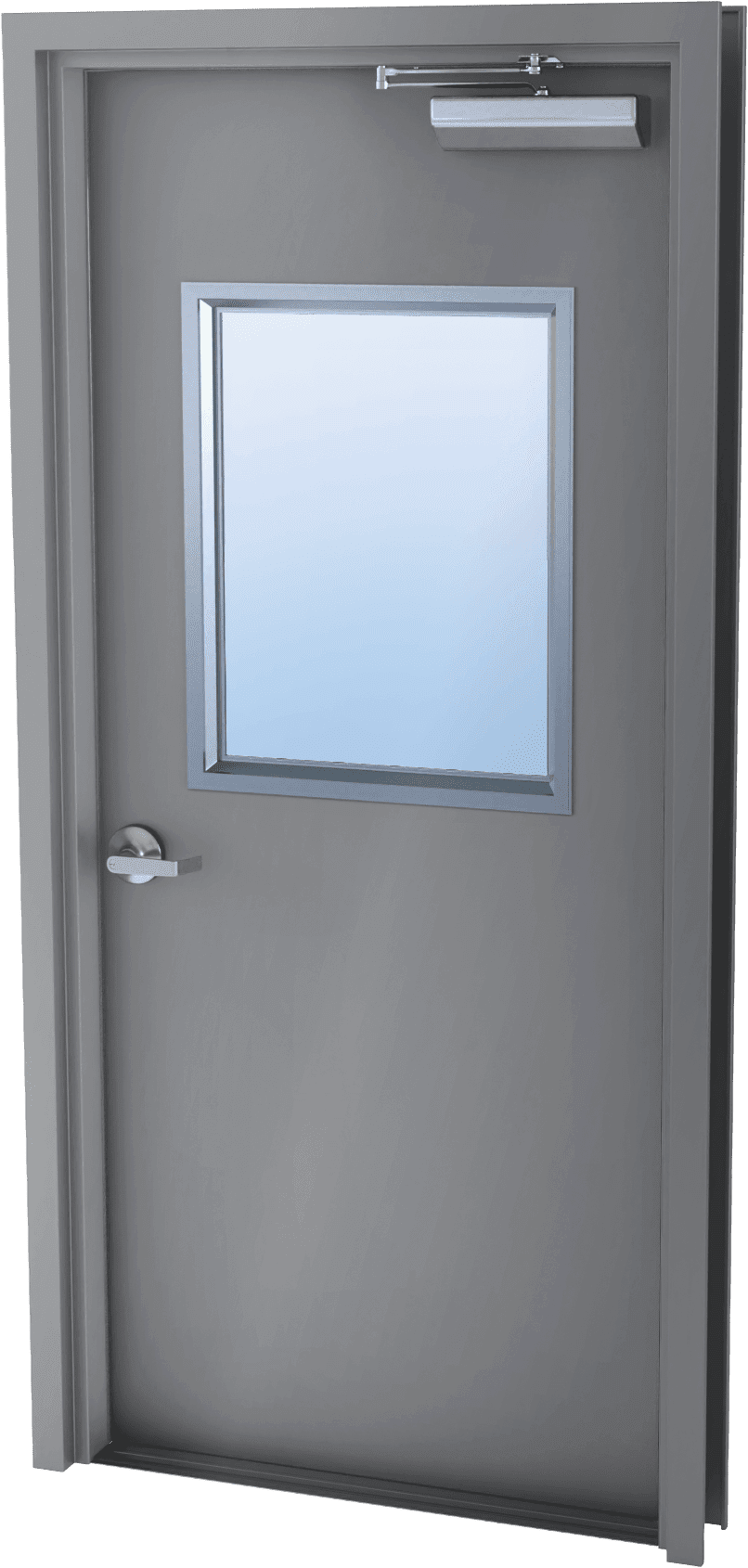

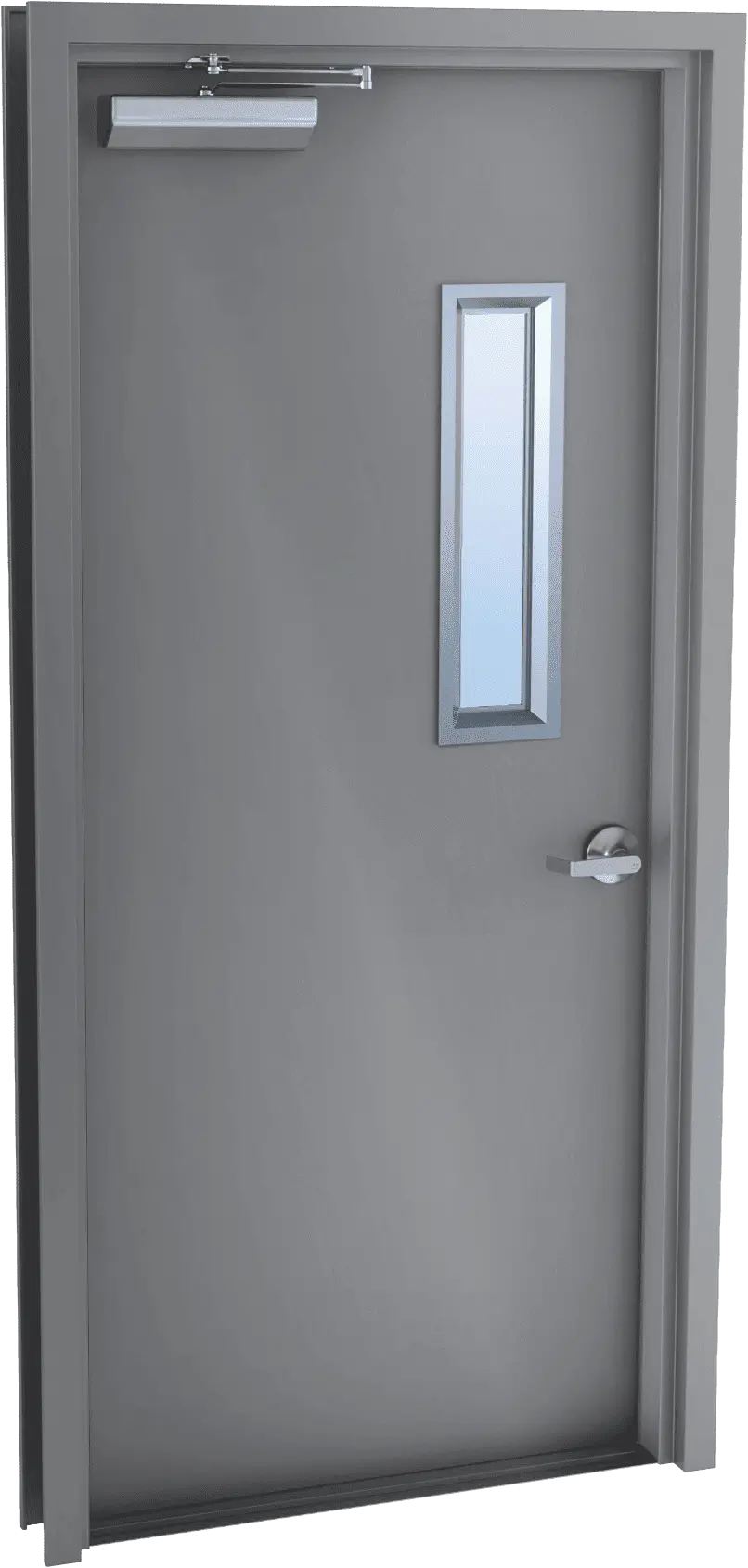

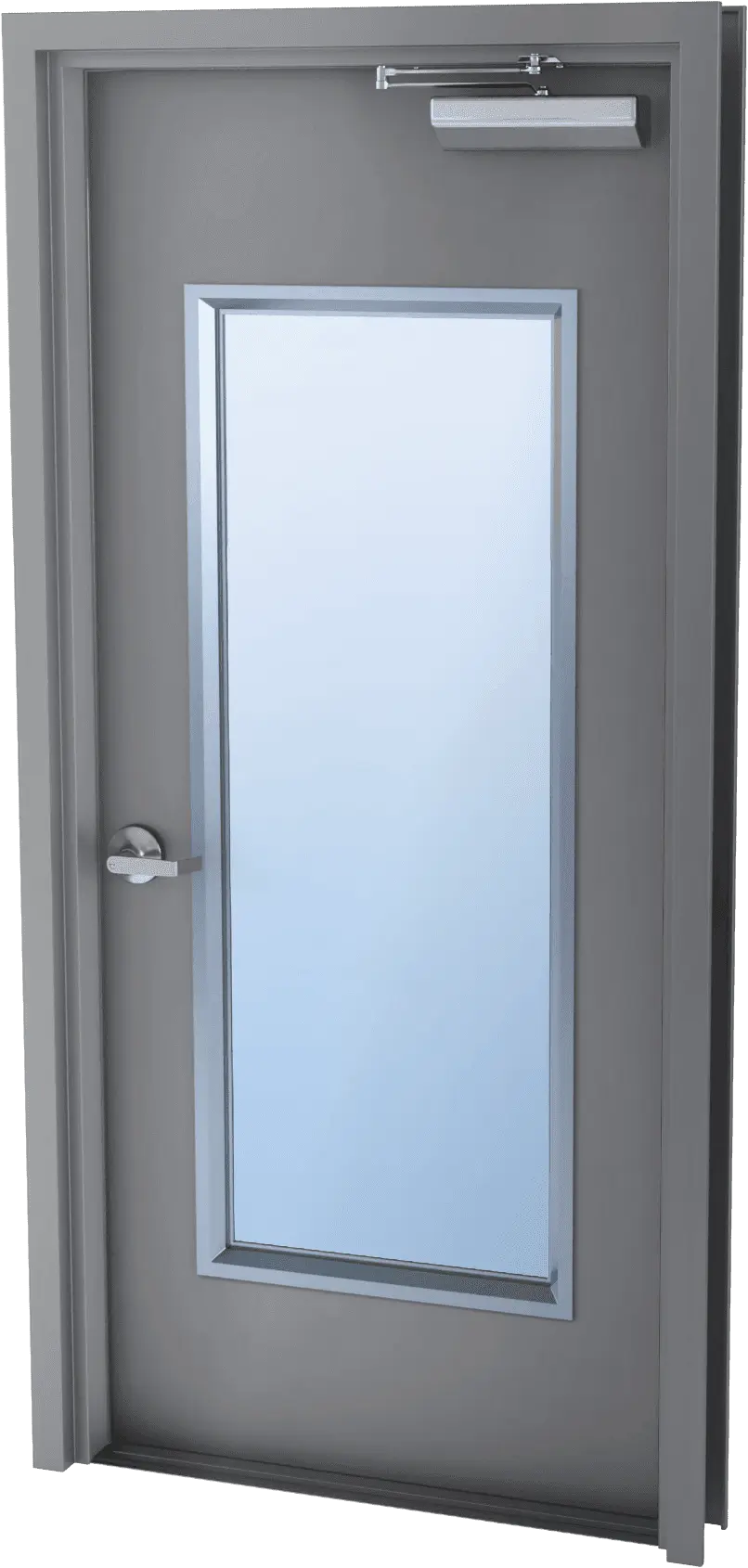

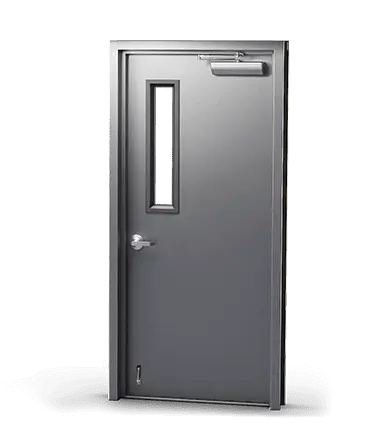

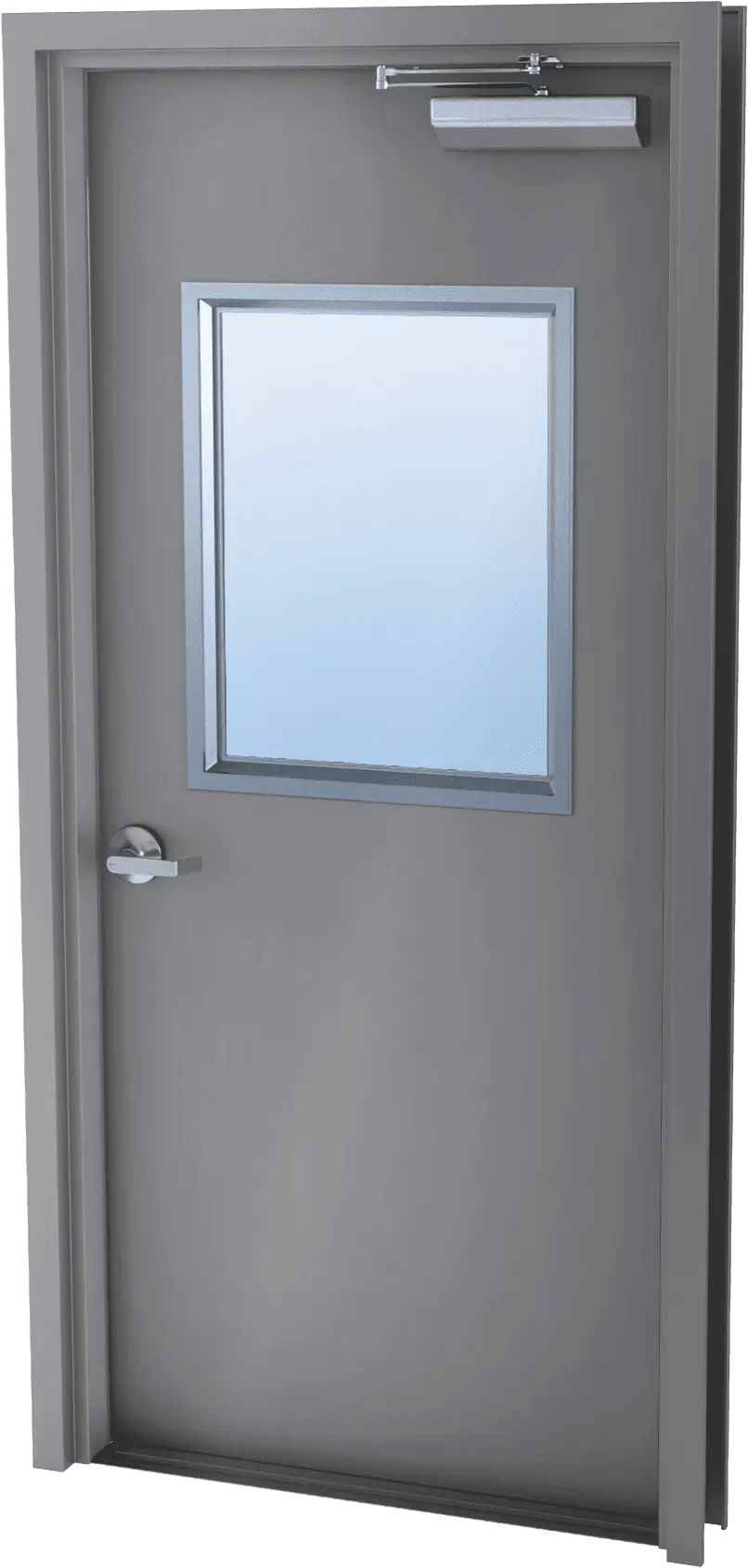

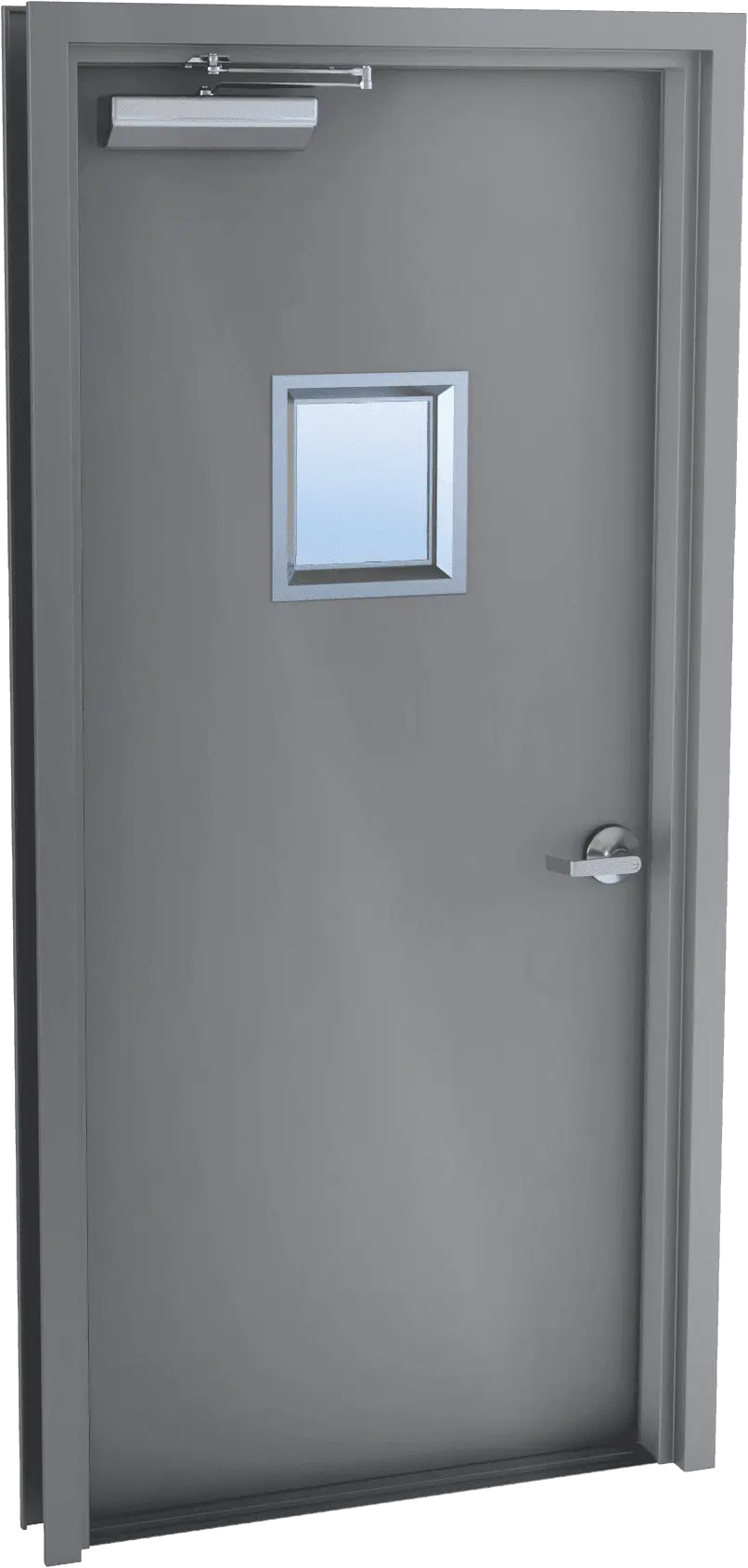

Available glass sizes - (6"x27"), (12"x12"), half glass, full glass
Thickness - 1-3/4" (20 minute fire rated)
One piece, clear, matching/compatible hardwood face laminated, SCL back, for painting or staining
Core - Wood particleboard door core to meet or exceed American National Standard ANSI/A208.1 for 1-LD-1 or 1-LD-2 door core. Exceeds requirements for 20 minute construction authority
Standard Glass Kit Type Options
We offer the main types of glass kits for your commercial door.

Tempered Glass - Standard glass type

Wire Glass - Aids in security breaches

Insulated Glass - Helps insulate the rooms

Fire Rated Clear Glass - Fire rated doors only
Instant Pricing
Build A Quote

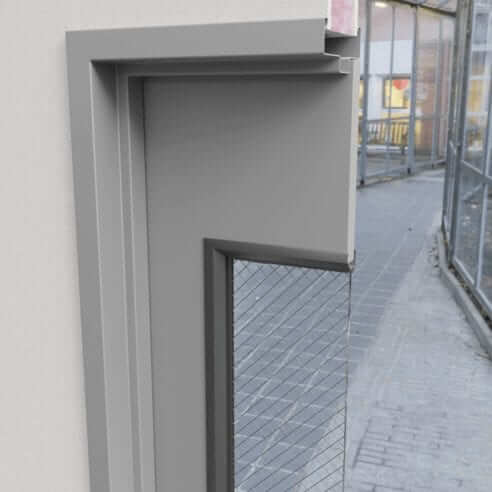

hollow_metal_door_glass_kit

All Industry Standard Sizes

All commercial doors come at a thickness of 1-3/4". We offer the industry's leading standard widths and heights for your openings. We provide cut down and restyling for custom sized doors to meet any custom opening. Be sure to review our width and height sizing chart before building your quote. If you have any further questions please contact us.

Most Popular Door Sizes

Call Size
Nominal Width
Nominal Height
3068
3’0″ (36 inch)
6’8″ (80 inch)
3070
3’0″ (36 inch)
7’0″ (84 inch)

Door Sizes |6’8″ Height

Call Size
Nominal Width
Nominal Height
2068
2’0″ (24 inch)
6’8″ (80 inch)
2468
2’4″ (28 inch)
6’8″ (80 inch)
2668
2’6″ (30 inch)
6’8″ (80 inch)
2868
2’8″ (32 inch)
6’8″ (80 inch)
21068
2’10” (34 inch)
6’8″ (80 inch)
3468
3’4″ (40 inch)
6’8″ (80 inch)
3668
3’6″ (42 inch)
6’8″ (80 inch)
3868
3’8″ (44 inch)
6’8″ (80 inch)
4068
4’0″ (48 inch)
6’8″ (80 inch)

Door Sizes |7’0″ Height

Call Size
Nominal Width
Nominal Height
2070
2’0″ (24 inch)
7’0″ (84 inch)
2470
2’4″ (28 inch)
7’0″ (84 inch)
2670
2’6″ (30 inch)
7’0″ (84 inch)
2870
2’8″ (32 inch)
7’0″ (84 inch)
21070
2’10” (34 inch)
7’0″ (84 inch)
3470
3’4″ (40 inch)
7’0″ (84 inch)
3670
3’6″ (42 inch)
7’0″ (84 inch)
3870
3’8″ (44 inch)
7’0″ (84 inch)
4070
4’0″ (48 inch)
7’0″ (84 inch)

Door Sizes |8’0″ Height

Call Size
Nominal Width
Nominal Height
2080
2’0″ (24 inch)
8’0″ (96 inch)
2480
2’4″ (28 inch)
8’0″ (96 inch)
2680
2’6″ (30 inch)
8’0″ (96 inch)
2880
2’8″ (32 inch)
8’0″ (96 inch)
21080
2’10” (34 inch)
8’0″ (96 inch)
3480
3’4″ (40 inch)
8’0″ (96 inch)
3680
3’6″ (42 inch)
8’0″ (96 inch)
3880
3’8″ (44 inch)
8’0″ (96 inch)
4080
4’0″ (48 inch)
8’0″ (96 inch)
Actual width is 1/4" under nominal door size, to allow for 1/8" clearance on hinge and strike sides.
Actual height is 7/8" under nominal door size. Standard undercut is 3/4" + 1/8" clearance at top = 7/8"
All doors = 1-3/4″ thickness
*Custom Door Widths and Heights upon Request.

Fire Rating Options

Our commercial grade doors can withstand the spread of fires to the architectural grade standard fire rating of 90 minutes. We carry fire rated doors with custom options including stain finishes, sizing, and non-existing hardware. The most common application for a fire rated door include commercial openings needing to meet code requirements or any opening that needs to be protected from a potential fire hazard from spreading.
non fire rated
0
20 MIN FIRE RATed
20
45 min fire rated
45
60 min fire rated
60
90 min fire rated
90
