Commercial Wood Doors With Glass Kits

Get Instant Pricing & Ship Time

5-7 Business Days on Stock Items

From $451

Easy To Install

All Industry Widths & Hights

Variety of Finishes

https://www.cdfdistributors.com/wp-content/uploads/2020/08/fire-rated-nav-doors-v1.png

Standard Product Description

Precision made core is composed entirely of wood particles which provides a stress free foundation and a completely smooth, uniform surface free of any voids, knots or patches that could show through the finish

Available glass types - tempered glass, wire glass, Power and Platinum glass, insulated glass

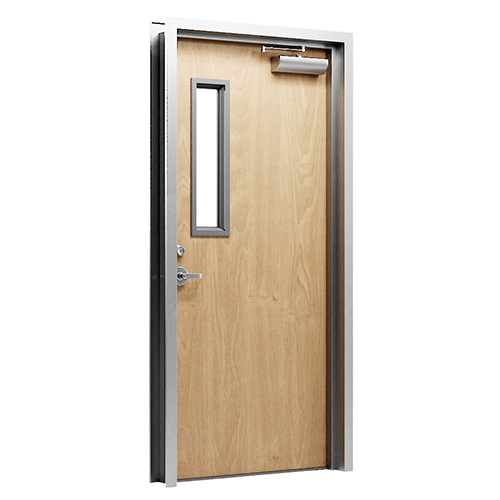

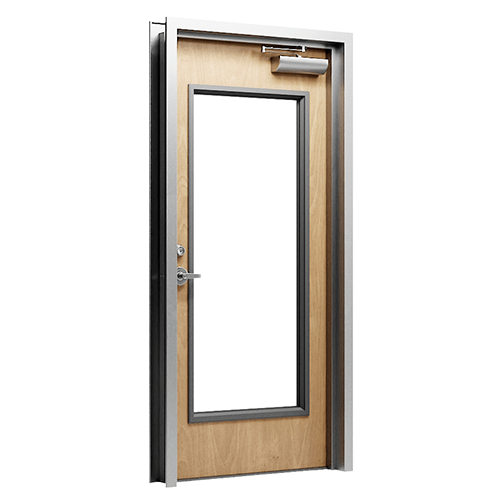

Available glass sizes - (6"x27"), (12"x12"), half glass, full glass

Thickness - 1-3/4" (20 minute fire rated)

One piece, clear, matching/compatible hardwood face laminated, SCL back, for painting or staining

Core - Wood particleboard door core to meet or exceed American National Standard ANSI/A208.1 for 1-LD-1 or 1-LD-2 door core.


Exceeds requirements for 20 minute construction authority

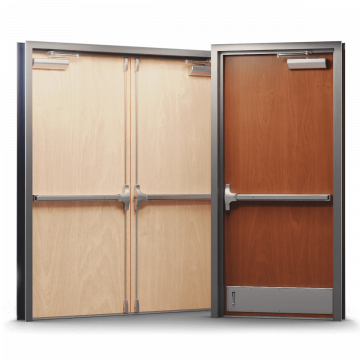

single-and-double-wood-door-stained

Commercial Wood Door Glass Kit Sizes

Standard Glass Kit Type Options
We offer the main types of glass kits for your commercial door.

Tempered Glass - Standard glass type

Wire Glass - Aids in security breaches

Insulated Glass - Helps insulate the rooms

Fire Rated Clear Glass - Fire rated doors only
Instant Pricing
Build A Quote
single wood door with glass kit

All Industry Standard Sizes

All commercial doors come at a thickness of 1-3/4". We offer the industry's leading standard widths and heights for your openings. We provide cut down and restyling for custom sized doors to meet any custom opening. Be sure to review our width and height sizing chart before building your quote. If you have any further questions please contact us.
Most Popular Door Sizes
Call Size
Nominal Width
Nominal Height
3068
3’0″ (36 inch)
6’8″ (80 inch)
3070
3’0″ (36 inch)
7’0″ (84 inch)
Door Sizes |6’8″ Height
Call Size
Nominal Width
Nominal Height
2068
2’0″ (24 inch)
6’8″ (80 inch)
2468
2’4″ (28 inch)
6’8″ (80 inch)
2668
2’6″ (30 inch)
6’8″ (80 inch)
2868
2’8″ (32 inch)
6’8″ (80 inch)
21068
2’10” (34 inch)
6’8″ (80 inch)
3468
3’4″ (40 inch)
6’8″ (80 inch)
3668
3’6″ (42 inch)
6’8″ (80 inch)
3868
3’8″ (44 inch)
6’8″ (80 inch)
4068
4’0″ (48 inch)
6’8″ (80 inch)
Door Sizes |7’0″ Height
Call Size
Nominal Width
Nominal Height
2070
2’0″ (24 inch)
7’0″ (84 inch)
2470
2’4″ (28 inch)
7’0″ (84 inch)
2670
2’6″ (30 inch)
7’0″ (84 inch)
2870
2’8″ (32 inch)
7’0″ (84 inch)
21070
2’10” (34 inch)
7’0″ (84 inch)
3470
3’4″ (40 inch)
7’0″ (84 inch)
3670
3’6″ (42 inch)
7’0″ (84 inch)
3870
3’8″ (44 inch)
7’0″ (84 inch)
4070
4’0″ (48 inch)
7’0″ (84 inch)
Door Sizes |8’0″ Height
Call Size
Nominal Width
Nominal Height
2080
2’0″ (24 inch)
8’0″ (96 inch)
2480
2’4″ (28 inch)
8’0″ (96 inch)
2680
2’6″ (30 inch)
8’0″ (96 inch)
2880
2’8″ (32 inch)
8’0″ (96 inch)
21080
2’10” (34 inch)
8’0″ (96 inch)
3480
3’4″ (40 inch)
8’0″ (96 inch)
3680
3’6″ (42 inch)
8’0″ (96 inch)
3880
3’8″ (44 inch)
8’0″ (96 inch)
4080
4’0″ (48 inch)
8’0″ (96 inch)
Actual width is 1/4" under nominal door size, to allow for 1/8" clearance on hinge and strike sides.
Actual height is 7/8" under nominal door size. Standard undercut is 3/4" + 1/8" clearance at top = 7/8"
All doors = 1-3/4″ thickness
*Custom Door Widths and Heights upon Request.

Door Fire Rating Options

Our commercial grade doors can withstand the spread of fires to the architectural grade standard fire rating of 90 minutes. We carry fire rated doors with custom options including stain finishes, sizing, and non-existing hardware. The most common application for a fire rated door include commercial openings needing to meet code requirements or any opening that needs to be protected from a potential fire hazard from spreading.
non fire rated
0
20 MIN FIRE RATed
20
45 min fire rated
45
60 min fire rated
60
90 min fire rated
90
