Ceco Commercial Hollow Metal Doors & Frames

double steel door set single and double

CECO Door is one of the world’s leading manufacturers of steel doors and frames for commercial, industrial and institutional buildings. Doors are available in a number of gauges and honeycomb, polystyrene foam and steel stiffened cores. CECO products are SDI Certified and Made in the USA. CDF Doors is an authorized WHI fire-labeled shop, enabling us to modify, re-certify and label Ceco fire-rated doors and frames.

"OI" Omega Series Door

Where the versatility of a non-handed door is an important advantage, the Omega offers a honeycomb core construction which can be switched on the job site to right or left handed openings, swing in or out, or as double doors.

1-3/4″ thick full flush (seamless optional) styles
Available in 18 and 16-gauge steel face sheets – Galvanized steel also available
“STC” (sound transmission class): 32
Impact resistant, full honeycomb core is sanded-edge
Crush strength is 45 PSI. Hemmed, smooth finish edges
Seamless edges available
Inside coated with waterproof adhesive for secure bond and rust prevention
Hinge reinforcement 7 gauge steel (3/16″ plate)
Chemically treated for paint adhesion. Oven-dried baked-on factor primer
Patented mechanical interlock eliminates weld marks, adds rigidity
Inverted top and bottom end channels welded to both face sheets for added stiffness. Optional steel closing caps available
Made in USA

"RI" Regent Series Door

Regent combines the aesthetic advantage of a beveled lock edge with the rigidity and impact resistance of Ceco honeycomb core construction. Regent’s lock edge is beveled 1/8″ in 2″ to produce a tight closure clearance. Face sheets are supported by full honeycomb core to assure exceptionally flat surfaces with high structural resistance to impact damage. Regent accepts cylindrical, mortise and unit locks and is adaptable to other commercial hardware.

1-3/4″ thick full flush (seamless optional) styles
Available in 18 and 16-gauge steel face sheets – Galvanized steel also available
“STC” (sound transmission class): 32
Impact resistant, full honeycomb core is sanded-edge
Crush strength is 45 PSI. Hemmed, smooth finish edges
Seamless edges available
Inside coated with waterproof adhesive for secure bond and rust prevention
Hinge reinforcement 7 gauge steel (3/16″ plate)
Chemically treated for paint adhesion. Oven-dried baked-on factor primer
Patented mechanical interlock eliminates weld marks, adds rigidity
Inverted top and bottom end channels welded to both face sheets for added stiffness. Optional steel closing caps available
Made in USA

SU Series Frames

Standard Frames with Unequal Rabbets for Masonry, Wood or Metal Stud Walls. Series SU frames have precision die-cut corners with positive locking tabs to assure rigid assembly connections.

For masonry, wood or metal studs wall, installed either to cap or butt the wall. Three or four piece door frames, Borrowed Lites, Side Lites, or Transom Frames.
Frame jamb depths: 4-3/4″, 5-3/4″, 6-3/4″, 7-3/4″, 8-3/4″
Unequal rabbets
16 and 14-gauge steel (14-gauge optional)
Available Knock-Down or Set-up and Welded.
High recycled steel content for LEED points up to 58.8%
Fire-rated up to 3 Hours

DU Series Frame

Ceco DU Series Drywall Frames have been design engineered to be installed on standard or non-standard wall sizes over prefinished or unfinished drywall board.
Heavy Duty; 16-Gauge Cold Rolled Steel
Quick Installation
Standard Compression Anchors for Steel or Wood Stud Walls
Die-mitered corners
Universal Hinge Preparations
Optional Door Closer Reinforcement
Fire-Rated up to 90 Minutes
Frame construction meets the requirements of ANSI A250.8-2003(SDI 100)

CECO Hardware Locations

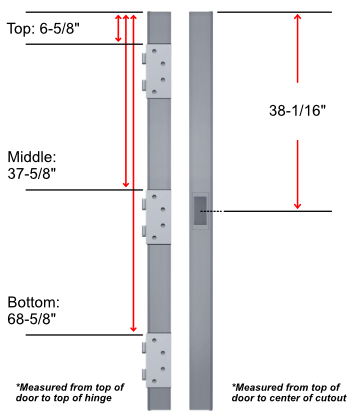

6'8" Doors

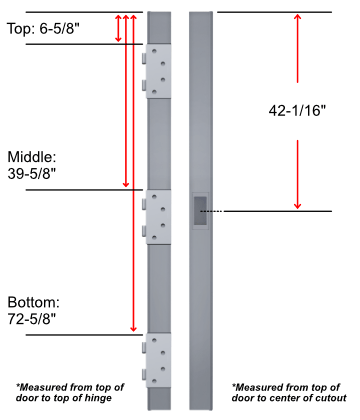

7'0" Doors

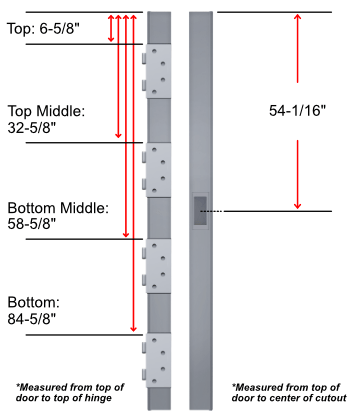

8'0" Doors
