Commercial Metal Doors With Louvers

Starting At $500
Fast Nationwide Delivery

Metal louvered doors are ideal for any type of commercial or industrial building. Metal louver doors are specifically designed for areas that need ventilation with closed doors for security and privacy, such as restrooms or electrical and mechanical closets.

All Metal Doors Sizes in Stock & Ship in 5-7 Business Days!

Single and Double Door Packages
Up to 3 Hour Fire Rating Available
Complete Metal Door, Frame, and Hardware Packages
Instant Pricing
Build Your Metal Door Quote
CDF Doors Is Your #1 Online Door Supplier

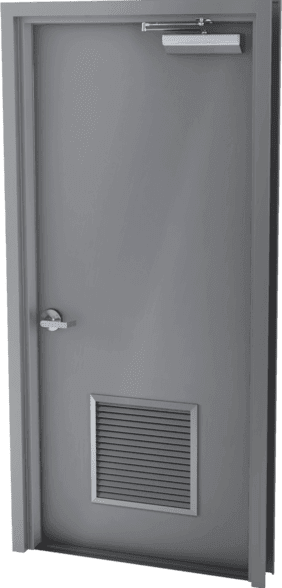

Need extra air flow in a specific room or area of your building? Adding a louver to your metal door is the perfect option for that. Whether you have a mechanical room or maintenance area, CDF can factory install a variety of different size louvers in your metal door. Remember, installing the louver at the factory makes your job easier and saves time which saves you money. We can also install Fire-rated Fusible Link Louvers in your fire rated metal door.

Standard Product Description

18 Gauge A40 Galvaneal Door
Interlocking Edge Seam with square hinge and beveled lock edge
Polystyrene or Honeycomb core
Prime painted
up to 3 hour label (ITS/WHI)
Heavy gauge closer reinforement
16 gauge inverted top and bottom caps
10 gauge min. hinge reinforcements

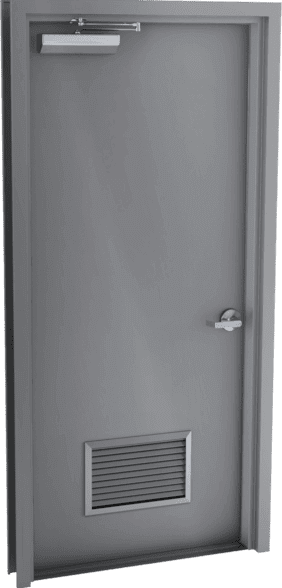

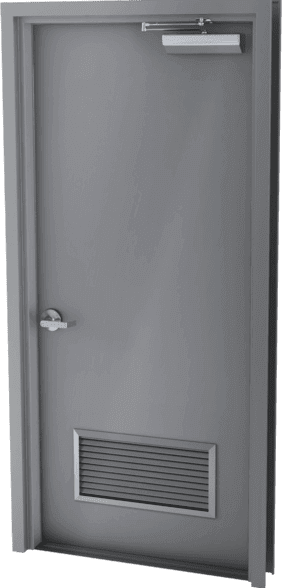

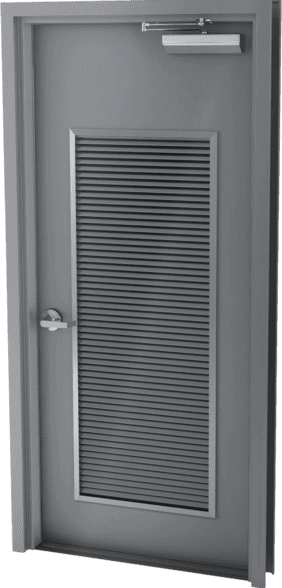

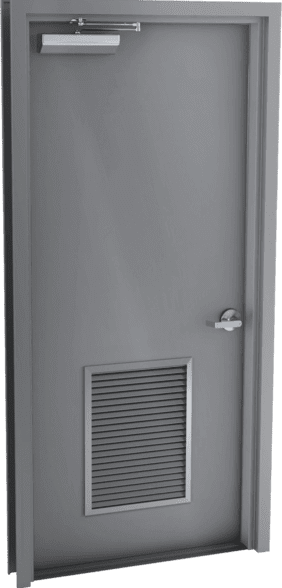

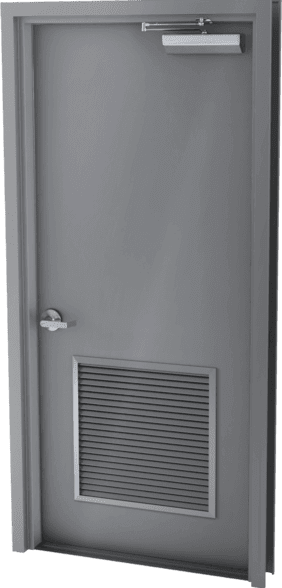

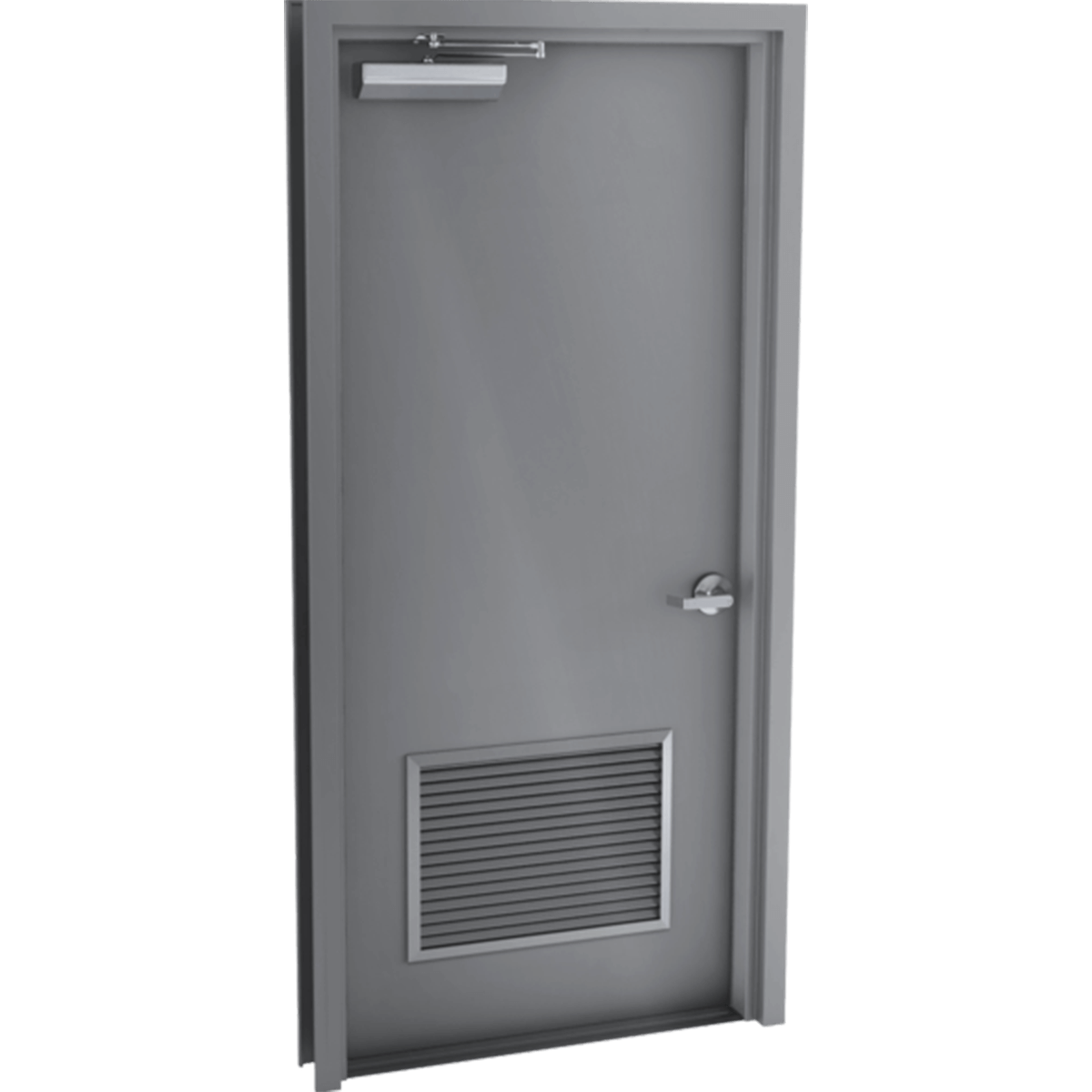

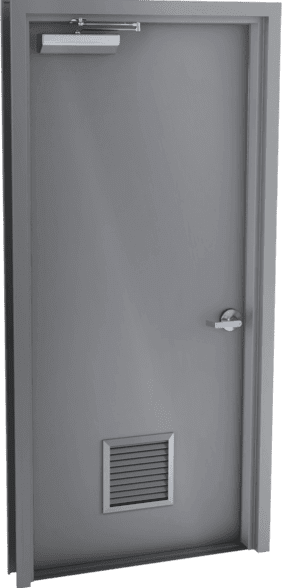

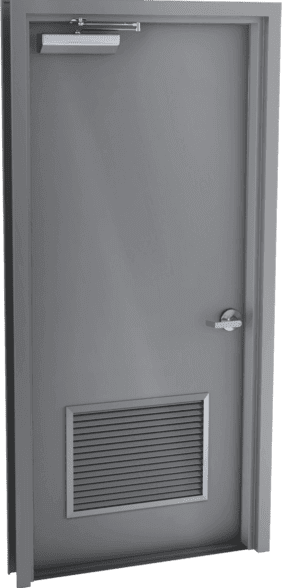

Available louver kit options - (6"x27"), (12"x12"), half louver, full louver

All Industry Standard Sizes

All commercial doors come at a thickness of 1-3/4". We offer the industry's leading standard widths and heights for your openings. We provide cut down and restyling for custom sized doors to meet any custom opening. Be sure to review our width and height sizing chart before building your quote. If you have any further questions please contact us.

Most Popular Door Sizes

Call Size
Nominal Width
Nominal Height
3068
3’0″ (36 inch)
6’8″ (80 inch)
3070
3’0″ (36 inch)
7’0″ (84 inch)

Door Sizes |6’8″ Height

Call Size
Nominal Width
Nominal Height
2068
2’0″ (24 inch)
6’8″ (80 inch)
2468
2’4″ (28 inch)
6’8″ (80 inch)
2668
2’6″ (30 inch)
6’8″ (80 inch)
2868
2’8″ (32 inch)
6’8″ (80 inch)
21068
2’10” (34 inch)
6’8″ (80 inch)
3468
3’4″ (40 inch)
6’8″ (80 inch)
3668
3’6″ (42 inch)
6’8″ (80 inch)
3868
3’8″ (44 inch)
6’8″ (80 inch)
4068
4’0″ (48 inch)
6’8″ (80 inch)

Door Sizes |7’0″ Height

Call Size
Nominal Width
Nominal Height
2070
2’0″ (24 inch)
7’0″ (84 inch)
2470
2’4″ (28 inch)
7’0″ (84 inch)
2670
2’6″ (30 inch)
7’0″ (84 inch)
2870
2’8″ (32 inch)
7’0″ (84 inch)
21070
2’10” (34 inch)
7’0″ (84 inch)
3470
3’4″ (40 inch)
7’0″ (84 inch)
3670
3’6″ (42 inch)
7’0″ (84 inch)
3870
3’8″ (44 inch)
7’0″ (84 inch)
4070
4’0″ (48 inch)
7’0″ (84 inch)

Door Sizes |8’0″ Height

Call Size
Nominal Width
Nominal Height
2080
2’0″ (24 inch)
8’0″ (96 inch)
2480
2’4″ (28 inch)
8’0″ (96 inch)
2680
2’6″ (30 inch)
8’0″ (96 inch)
2880
2’8″ (32 inch)
8’0″ (96 inch)
21080
2’10” (34 inch)
8’0″ (96 inch)
3480
3’4″ (40 inch)
8’0″ (96 inch)
3680
3’6″ (42 inch)
8’0″ (96 inch)
3880
3’8″ (44 inch)
8’0″ (96 inch)
4080
4’0″ (48 inch)
8’0″ (96 inch)
Actual width is 1/4" under nominal door size, to allow for 1/8" clearance on hinge and strike sides.
Actual height is 7/8" under nominal door size. Standard undercut is 3/4" + 1/8" clearance at top = 7/8"
All doors = 1-3/4″ thickness
*Custom Door Widths and Heights upon Request.

Door Fire Rating Options

Our commercial grade doors can withstand the spread of fires to the architectural grade standard fire rating of 90 minutes. We carry fire rated commercial doors with custom options including stain finishes, sizing, and non-existing hardware. The most common application for a fire rated door include commercial openings needing to meet code requirements or any opening that needs to be protected from a potential fire hazard from spreading.
non fire rated
0
20 MIN FIRE RATed
20
45 min fire rated
45
60 min fire rated
60
90 min fire rated
90
