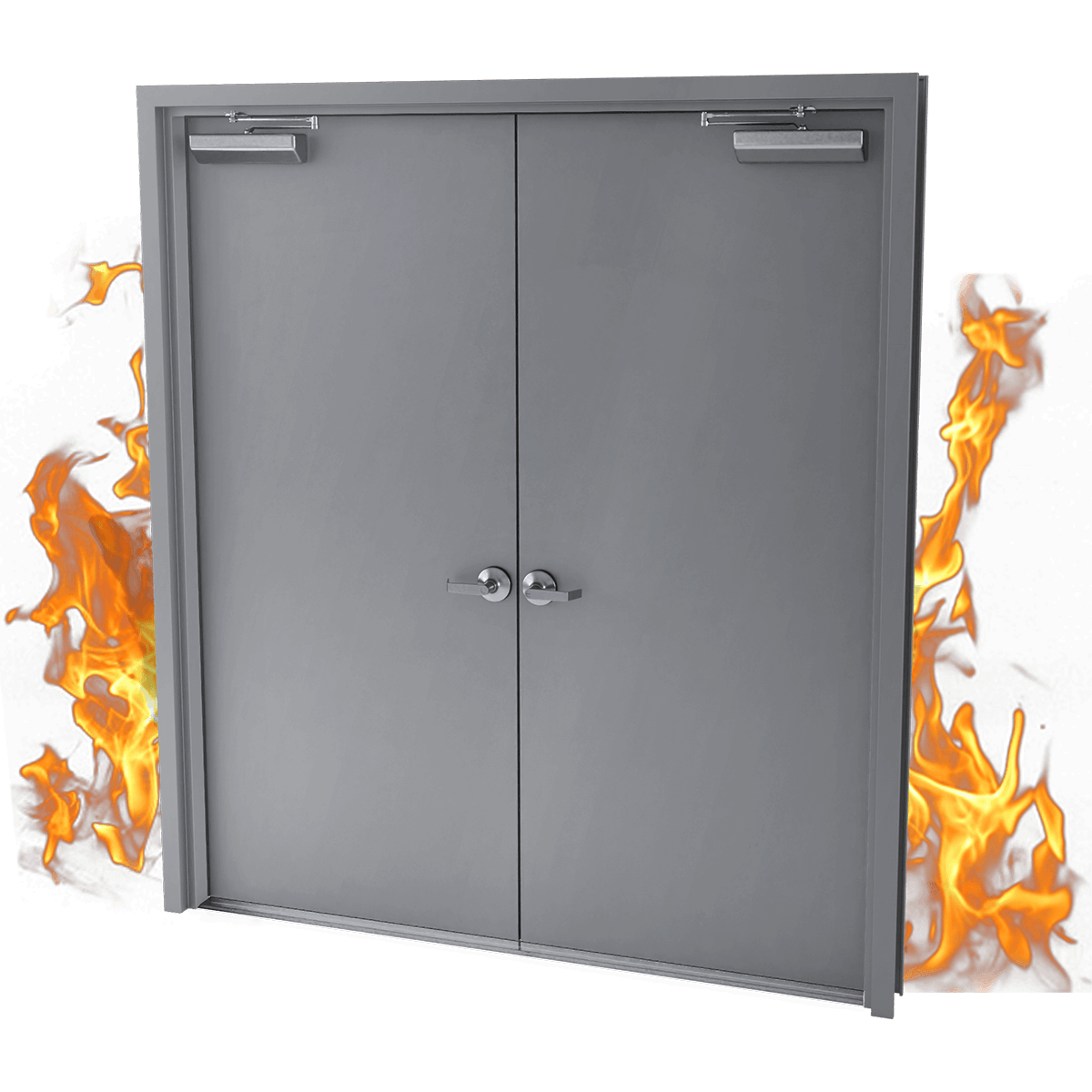

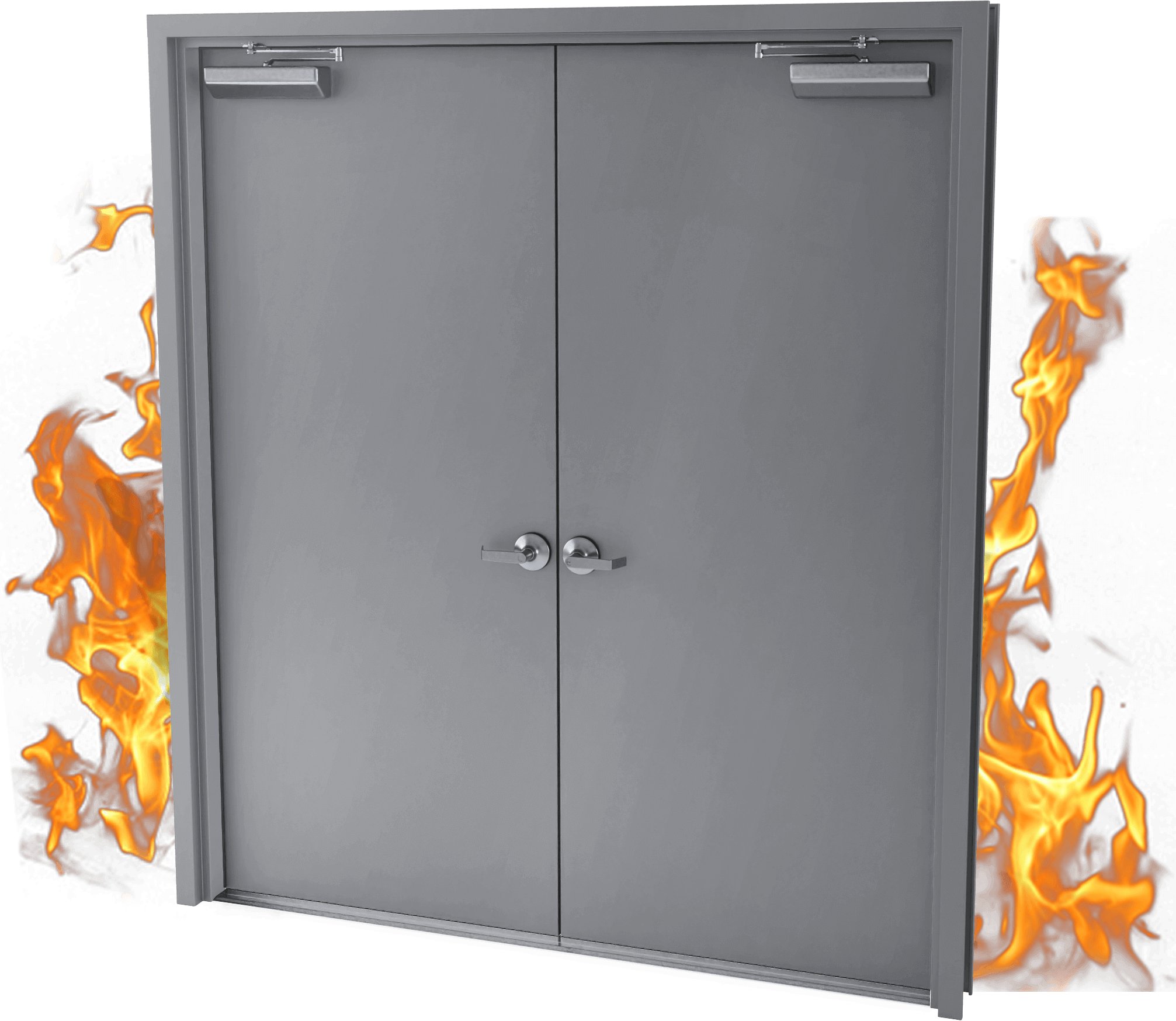

Fire Rated Metal Double Door

3 Hour Fire Rated - Starting at $428

Fast Shipping

Lowest Prices

Instant Pricing

Our metal doors with glass window kits are a great way to add extra light to a room, while providing additional safety to any occupants. Our borrowed lites are available in several different styles to fit the needs of any room.

Standard Product Description

18 Gauge A40 Galvaneal Door
Interlocking Edge Seam with square hinge and beveled lock edge
Polystyrene or Honeycomb core
Prime painted
up to 3 hour label (ITS/WHI)
Heavy gauge closer reinforement
16 gauge inverted top and bottom caps
10 gauge min. hinge reinforcements
Fire rated insulated glass available
Fire rated options - Non rated, 20 minute, 45 minute, 60 minute, 90 minute, and 3 HR

Fire Rating Options

Our commercial grade doors can withstand the spread of fires to the architectural grade standard fire rating of 90 minutes. We carry fire rated doors with custom options including stain finishes, sizing, and non-existing hardware. The most common application for a fire rated door include commercial openings needing to meet code requirements or any opening that needs to be protected from a potential fire hazard from spreading.
non fire rated
0
20 MIN FIRE RATed
20
45 min fire rated
45
60 min fire rated
60
90 min fire rated
90

All Industry Standard Sizes

All commercial doors come at a thickness of 1-3/4". We offer the industry's leading standard widths and heights for your openings. We provide cut down and restyling for custom sized doors to meet any custom opening. Be sure to review our width and height sizing chart before building your quote. If you have any further questions please contact us.

Most Popular Door Sizes

Call Size
Nominal Width
Nominal Height
3068
3’0″ (36 inch)
6’8″ (80 inch)
3070
3’0″ (36 inch)
7’0″ (84 inch)

Door Sizes |6’8″ Height

Call Size
Nominal Width
Nominal Height
2068
2’0″ (24 inch)
6’8″ (80 inch)
2468
2’4″ (28 inch)
6’8″ (80 inch)
2668
2’6″ (30 inch)
6’8″ (80 inch)
2868
2’8″ (32 inch)
6’8″ (80 inch)
21068
2’10” (34 inch)
6’8″ (80 inch)
3468
3’4″ (40 inch)
6’8″ (80 inch)
3668
3’6″ (42 inch)
6’8″ (80 inch)
3868
3’8″ (44 inch)
6’8″ (80 inch)
4068
4’0″ (48 inch)
6’8″ (80 inch)

Door Sizes |7’0″ Height

Call Size
Nominal Width
Nominal Height
2070
2’0″ (24 inch)
7’0″ (84 inch)
2470
2’4″ (28 inch)
7’0″ (84 inch)
2670
2’6″ (30 inch)
7’0″ (84 inch)
2870
2’8″ (32 inch)
7’0″ (84 inch)
21070
2’10” (34 inch)
7’0″ (84 inch)
3470
3’4″ (40 inch)
7’0″ (84 inch)
3670
3’6″ (42 inch)
7’0″ (84 inch)
3870
3’8″ (44 inch)
7’0″ (84 inch)
4070
4’0″ (48 inch)
7’0″ (84 inch)

Door Sizes |8’0″ Height

Call Size
Nominal Width
Nominal Height
2080
2’0″ (24 inch)
8’0″ (96 inch)
2480
2’4″ (28 inch)
8’0″ (96 inch)
2680
2’6″ (30 inch)
8’0″ (96 inch)
2880
2’8″ (32 inch)
8’0″ (96 inch)
21080
2’10” (34 inch)
8’0″ (96 inch)
3480
3’4″ (40 inch)
8’0″ (96 inch)
3680
3’6″ (42 inch)
8’0″ (96 inch)
3880
3’8″ (44 inch)
8’0″ (96 inch)
4080
4’0″ (48 inch)
8’0″ (96 inch)
Actual width is 1/4" under nominal door size, to allow for 1/8" clearance on hinge and strike sides.
Actual height is 7/8" under nominal door size. Standard undercut is 3/4" + 1/8" clearance at top = 7/8"
All doors = 1-3/4″ thickness
*Custom Door Widths and Heights upon Request.
