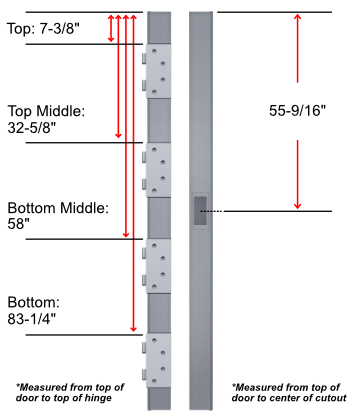

Steelcraft Doors are designed for commercial, institutional and industrial applications, Steelcraft provides a full selection of hollow metal doors and frames for virtually any wall condition or entryway requirement. Known for their high-quality construction and durability, Steelcraft products are SDI Certified and Made in the USA. CDF Doors is an authorized WHI fire-labeled shop, enabling us to modify, re-certify and label Steelcraft fire-rated doors and frames. CDF sells commercial hollow metal steel doors with Steelcraft hinge locations.
Steelcraft Falcon SZ Series Door
The Steelcraft Falcon SZ Series door is an affordable non-handed, square-edge door solution designed to meet your requirements for commercial quality full flush steel doors.
Heavy Duty; 18-Gauge Cold Rolled Steel

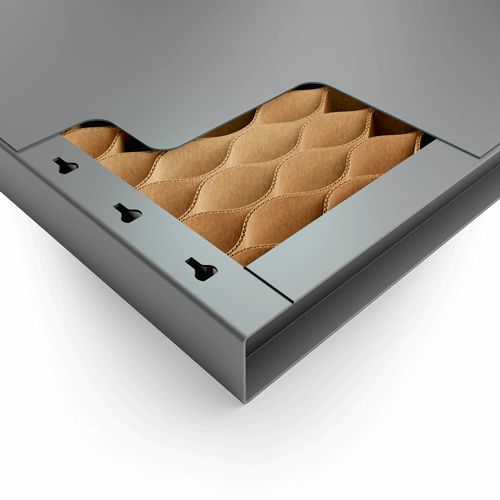

1 ̋ (25mm) cell Kraft Honeycomb Core
1-3/4″ Thickness Standard

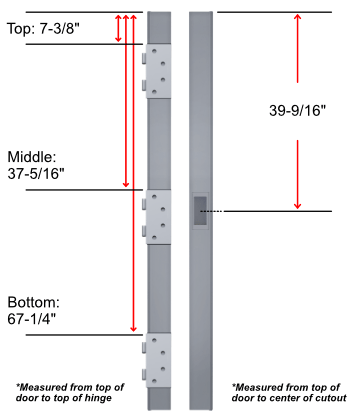

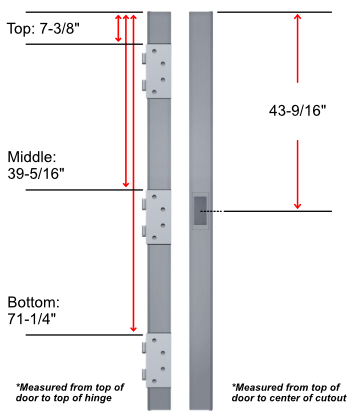

Square-edge with non-handed hinge preparation
Full height, visible mechanical interlock edges and 14-gauge inverted top and bottom channels
Standard, 14-gauge closer reinforcement
Factory-Applied, Baked-On Rust Inhibiting Primer (No Special Color Options)
Standard Lock Preps Include 161 (cylindrical lock), 86 Edge (mortise lock), Deadbolt, Panic Bar Reinforced
Doors are factory labeled with a Warnock Hersey 1-1⁄2 Hour (90 min) Mylar label, 3 Hour Label Available
Door construction meets the requirements of ANSI A250.8-2003 (SDI 100)
The L Series is designed to meet the broadest architectural requirements with premium construction, offering superior strength, stability and performance.
Continuous bonding of laminate core to steel face sheets provides an attractive, flat surface, making the L Series doors ideal for interior and exterior applications. Steelcraft L20, L18, and L16 all meet architectural requirements for full flush doors, while the L14 flush doors provide the best choice for maximum-duty full flush doors.
L Series doors are 1-3/4” (45mm) thick and offer a wide range of specifiable options covering sizes, core material, glass light designs, optional edge constructions, and mechanical and electrical hardware preparations. Tested both internal and through certified third parties, these doors provide the necessary performance to meet the broadest of opening needs.
L-18 – Heavy Duty; 18-Gauge Cold Rolled Steel
L-16 – Extra Heavy Duty; 16-Gauge Cold Rolled Steel
Internal steel stiffeners add strength to meet architectural requirements and industry standards.
Internal steel stiffeners extend the full door width to ensure B18, B16 and B14 Series flush doors meet architectural requirements and industry standards for full flush and steel-stiffened doors. Stiffeners are welded to the door face sheets and bonded to the opposite panel, bolstering strength and durability. Full-height, epoxy-filled mechanical interlock edges provide structural support and stability.
Beveled hinge and lock edges allow tighter installation tolerances, ensure easier operation and eliminate binding and sticking. The B Series doors are 1-3/4” (45mm) thick and offer a wide range of specifiable options covering sizes, glass light designs, edge constructions and mechanical, pneumatic and electrical hardware preparations.
Steel-stiffened core construction with welded 20-gauge hat section stiffeners provides strength and durability
Full height, epoxy-filled mechanical interlock edges provide structural support and stability across full height of door edges

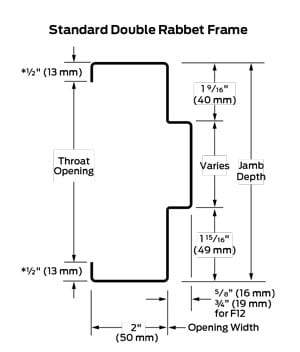

F Series 3-sided flush frames are designed to meet requirements for standard to maximum duty applications including commercial, industrial and institutional buildings. They are installed in both interior and exterior locations, and in virtually all types of buildings and wall constructions. They are designed for installation as part of the wall framing sequence and may be specified and supplied as knock-down (KD) for field assembly prior to installation or welded for installation as a complete unit.
F-16 – Heavy Duty; 16-Gauge Cold Rolled Steel
F-14 – Extra Heavy Duty; 14-Gauge Cold Rolled Steel
Available KD or Welded
Anchors for New and Existing Walls
Die-mitered corner connections
Patented universal hinge preparations
Adjustable base anchors
Optional Door Closer Reinforcement
Factory-Applied, Baked-On Rust Inhibiting Primer (Steelcraft Beige)
Fire-rated up to 3 Hours
Frame construction meets the requirements of ANSI A250.8-2003

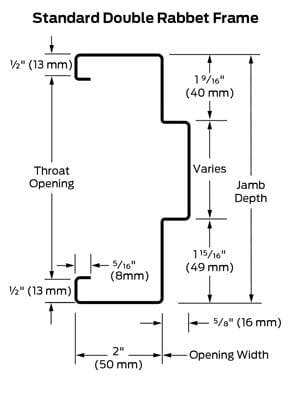

The K Series’ unique design assures quick, neat installation on finished drywall construction.
K Series Drywall frames are designed for light to heavy duty applications in both commercial and institutional buildings. They can be installed in rough openings after the wall has been constructed and finished. To accommodate the installation of the K Series Drywall frames on finished drywall construction, they are supplied with a KD (knock-down) corner for quick installation.
K-16 – Heavy Duty; 16-Gauge Cold Rolled Steel
K-14 – Extra Heavy Duty; 14-Gauge Cold Rolled Steel
Quick and Flexible Installation
Standard Compression Anchors for Steel or Wood Stud Walls
Die-mitered corner connections
Universal Hinge Preparations
Optional Door Closer Reinforcement
Sill attachment is made through the frame face, directly into the wall sill runner; frame is supplied with factory countersunk holes for screw attachment
Factory-Applied, Baked-On Rust Inhibiting Primer (Steelcraft Beige)
Fire-Rated up to 90 Minutes
Frame construction meets the requirements of ANSI A250.8-2003(SDI 100)
